How to Prevent Melting Your PSU GPU Cables and Why GIGABYTE T-Guard is the Ultimate Fix

Is Your High-End GPU at Risk? Is Your GPU Power Cable Safe?

The Expert Guide to Preventing PSU Cable and Connector Melting


GPU cable melting is a significant risk caused by high electrical resistance from improper installation or extreme cable stress. To safeguard your high-end hardware, this guide provides essential DIY building tips to ensure a stable connection. While proper installation is the first line of defense, GIGABYTE's T-Guard technology offers an exclusive, automated safety layer that monitors temperatures in real-time, preventing thermal damage before it can even start.

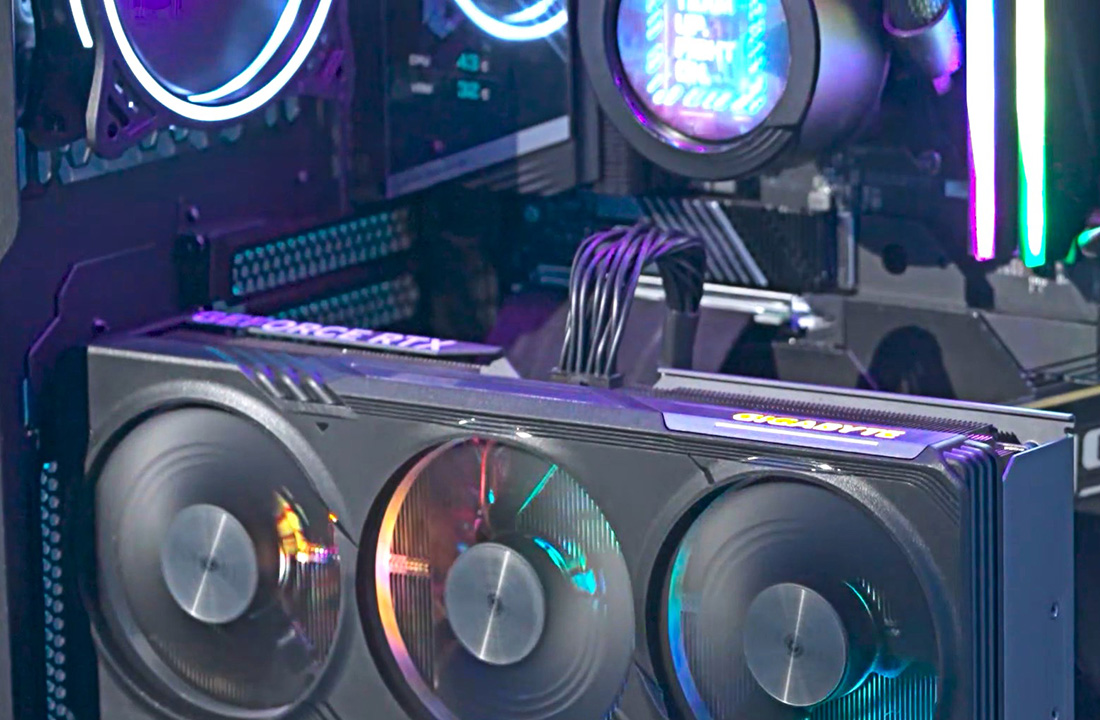

Why GPU Power Cables Can Melt

Modern high-performance GPUs (including the RTX 50 series) can pull up to 600W through a single 12V-2x6 connector. When electricity meets resistance, it generates heat. If that heat isn't managed, the plastic housing can deform or melt, potentially leading to further damage to the graphics card.
Common Risk Factors:

1. Incomplete Seating: Even a 1mm gap can cause terminal misalignment, leading to localized "hot spots.
2. Mechanical Stress: Sharp bends near the plug pull the internal pins away from their contact points.
3. Third-Party Adapters: Every extra bridge in the power chain adds contact resistance.
4. Thermal Fatigue: Sustained high-power draw over months of heavy gaming or rendering.

Pro-Building Tips: Mastering the 12V-2x6 Connection

To minimize risks, follow these industry-standard installation practices:

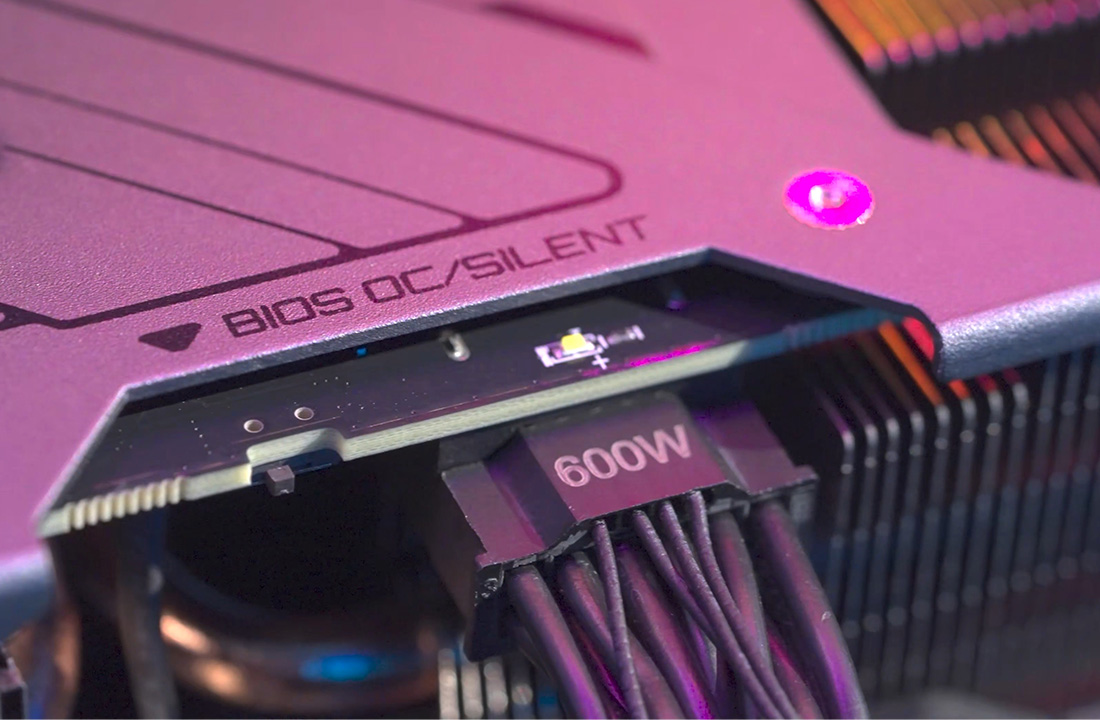

1. The "No-Gap" Rule:
   Push the connector firmly until you hear an audible "click". Visual inspection is mandatory—there should be zero daylight between the cable plug and the GPU header.
2. Use Native ATX 3.1 Standards:
   Native 12V-2x6 cables from an ATX 3.0 or 3.1 PSU are engineered for these loads. Unlike legacy 8-pin to 16-pin adapters, native cables utilize the four "sense pins" correctly to communicate power limits between the PSU and GPU.


Advanced Monitoring: Beyond Manual Inspection

While thermal cameras and software monitoring are popular among enthusiasts, they aren't practical for 24/7 protection.

• Thermal Discoloration: Periodically check your plugs for yellowing or warping.
• Software Limits: Consider a slight power undervolt if your case has poor airflow.

However, the most effective protection is a system that watches the hardware for you.

The GIGABYTE Advantage: Patented T-Guard Technology

GIGABYTE's GAMING Series PSUs, such as the GIGABYTE GAMING 1000GM PG5 / GIGABYTE GAMING 850GM PG5 / GIGABYTE GAMING 750GM PG5, go beyond standard safety specs by integrating a dedicated hardware safety layer.

Dual-Color Visual Confirmation

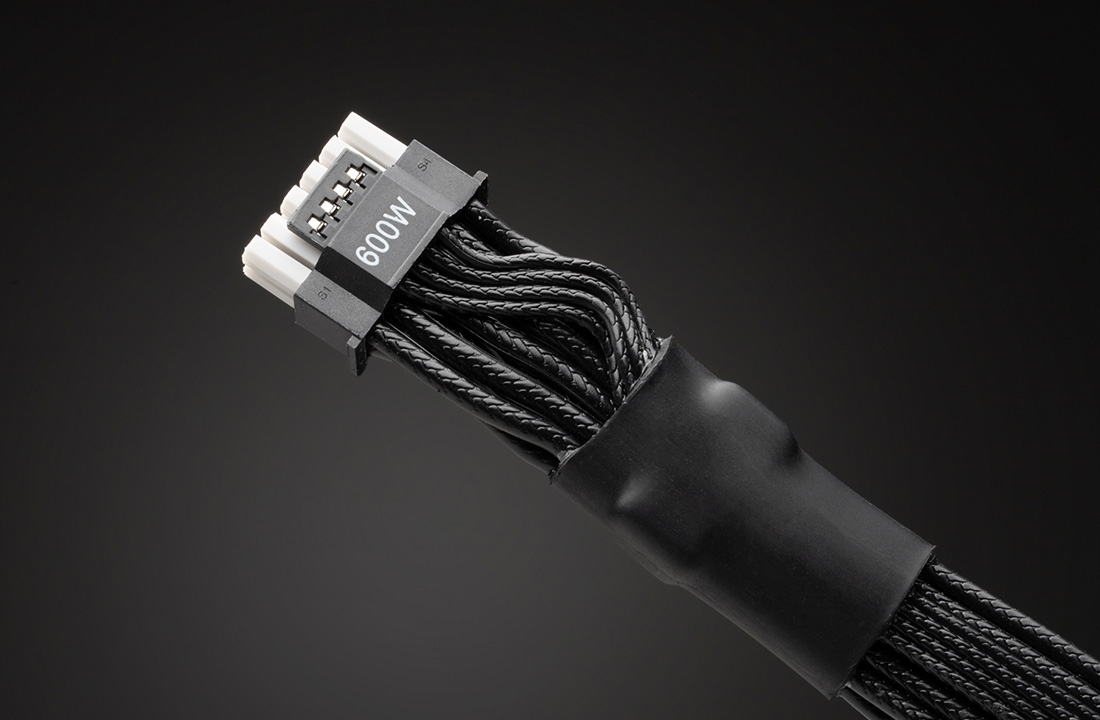

GIGABYTE simplifies installation with a Dual-Color 12V-2x6 cable. If you can still see the secondary color on the connector after plugging it in, the cable is not fully seated. This "idiot-proof" design eliminates the cause of cable failure.

T-Guard: Your GPU's Silent Guardian

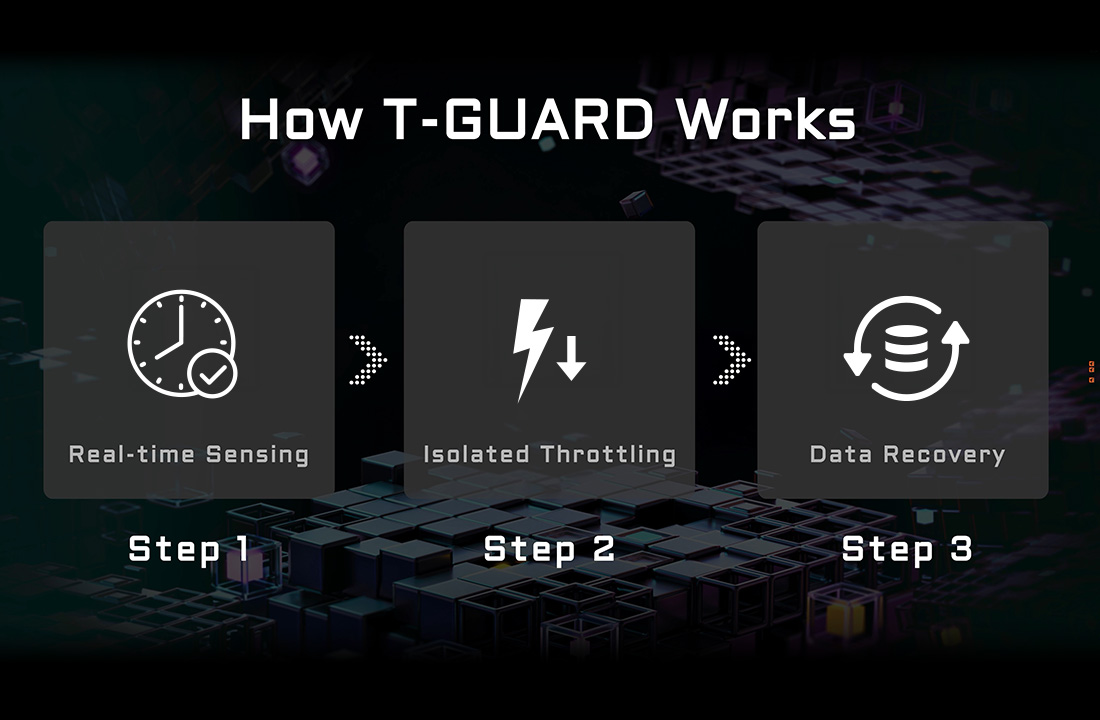

Unlike traditional Power Supply Units that limit safety to internal Over Temperature Protection (OTP), GIGABYTE T-Guard redefines safety by monitoring the critical point of failure: the GPU connector itself. By integrating a dedicated thermal sensor directly into the 12V-2x6 cable, T-Guard provides a sophisticated, hardware-level defense system:

1. Real-Time Sensing: Constant, real-time monitoring of the 12V-2x6 interface to detect localized heat buildup before it escalates.
2. Intelligent Power Throttling: Upon detecting abnormal temperatures, T-Guard strategically caps GPU power. This proactive cooling prevents cable melting while maintaining system power to protect other components.
3. Smart Response & Data Safety: If a throttle occurs, the system remains powered. Users can simply switch to integrated graphics via the motherboard to save critical work and perform a safe, controlled shutdown.
4. Zero-Cost Professional Protection: Eliminates the need for external thermal imaging; the intelligence is natively built into your PSU.

Building for the Future of Power

As GPU power demands continue to rise, cable management is no longer just about aesthetics—it's about system longevity. By combining proper installation techniques with GIGABYTE's T-Guard-equipped PSUs, you can eliminate "connector anxiety" and focus on what matters: the game.

GIGABYTE's T-Guard-equipped PSU Models:

GIGABYTE GAMING 1000GM PG5
GIGABYTE GAMING 850GM PG5
GIGABYTE GAMING 750GM PG5
GIGABYTE GAMING 1000GM PG5 ICE
GIGABYTE GAMING 850GM PG5 ICE
GIGABYTE GAMING 750GM PG5 ICE
